Paint Collector is widely used in built horizontally system and also vertically or combined horizontally and vertically. From the smallest manual spray booth up to automated coating lines. Paint Collector technology can be retrofitted to existing systems easily and cost-effectively.
Cost-intensive and time-intensive paint sludge extraction is not required and maintenance costs are avoided without pump equipment. Cleaning work costs are reduced. Economical supply and storage by disassembled boxes. 100kg/㎡ of absorption and more depending on material in use, 97% degree of separation with proper application.

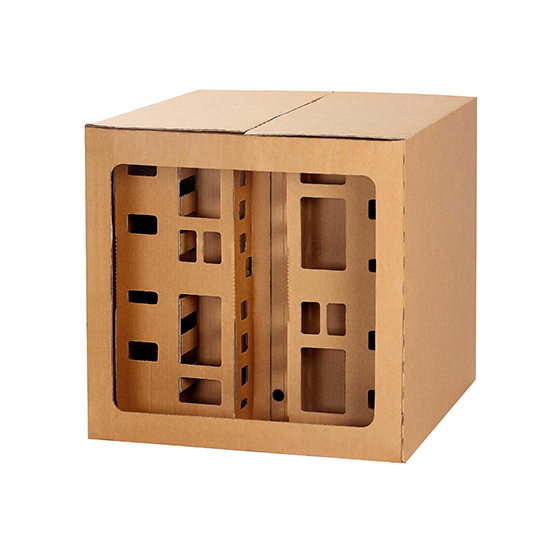

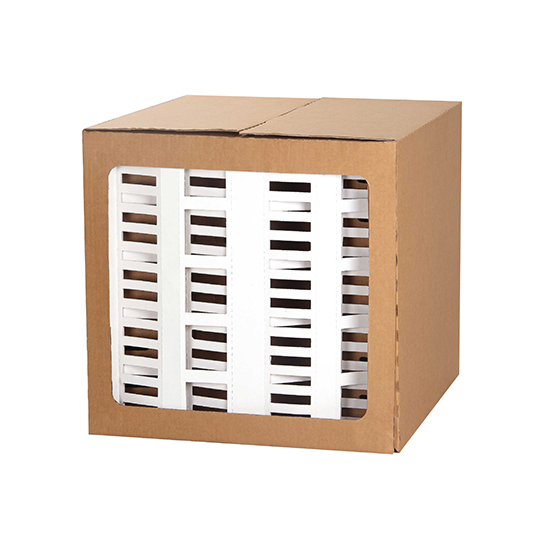

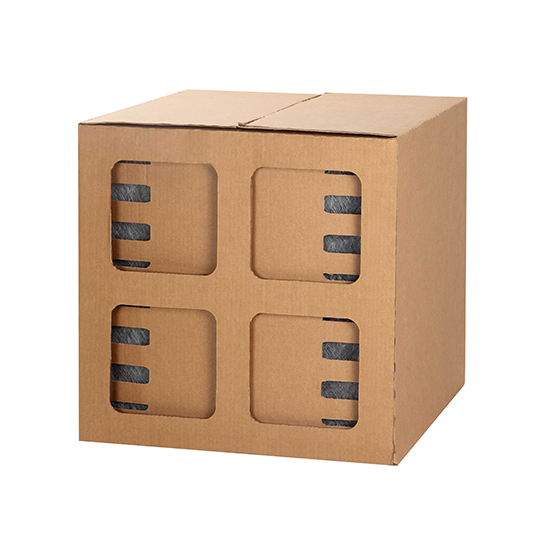

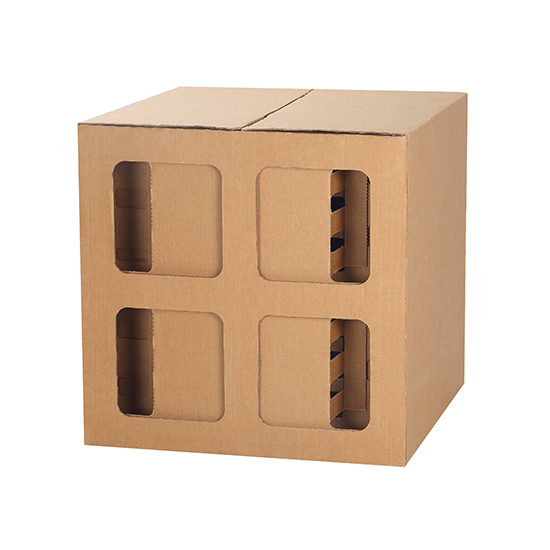

3 types of choices(rough, medium and fine) as below drawing for your reference for different types of coating and adhesion for the absorption to cover every area of application of the paints industry. 480*480*500mm and 480*480*300mm as the normal dimensions, fire-retardant with temperature resistance 80℃.
|Name||Absorption Capacity (kg/㎡)||Degree Of Separation||Nominal Volume Flow Rate||Recommended Air Speed (m/s)||
Initial Pressure Drop (Pa)
