Pocket Media

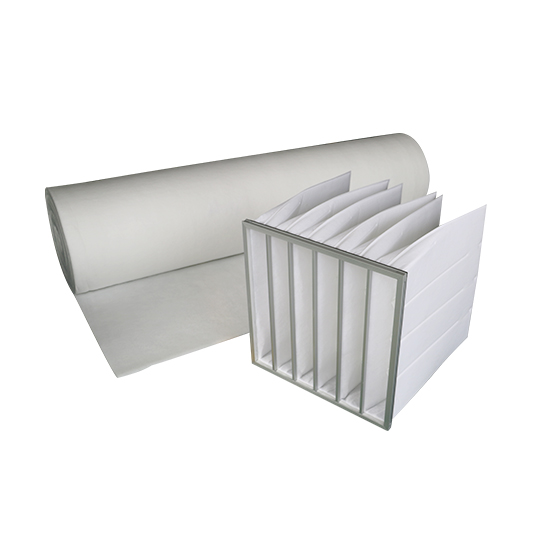

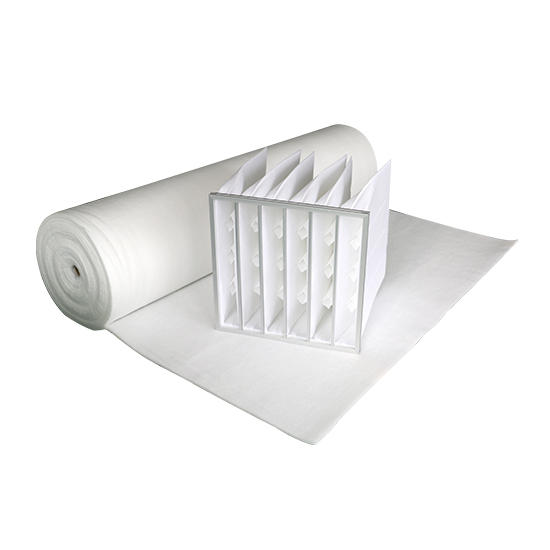

Synthetic Fiber Bag Filter Media

Product Features

Speciality:
●Mainly used in automobile manufacturing, turbine nuclear power, Hi-tech electronic, high dust holding capacity fields etc.
●Consisted of high performance synthetic fiber and micro-fiber material with gradual technology.
●Firm bag design can strength the structure, accompanied by thin air bag structure, which can stabilize the air flow to the greatest degree.
●Anti-burst & High-frequency welding structures avoid dust leaking out.
●Low initial pressure drop, huge effective filtration area.
●Conforming to European DIN53438-1 and America UL900-Class 2.

Consult now

Technical Parameters

Type Filter Class Average
Arrestance
Initial
Efficiency
Nominal
Velocity(m/s)
Rated
Airflow(m³/h)
Initial
Resistance(Pa)
Final
Resistance(Pa)
Dust
Resistance(g/㎡)
Thickness Sizes
SHW-60 F5 96% <22% 0.25m/s 900m3/h 45Pa 450Pa 380g/m2 12mm 1.0*20M
2.0*20M

Note: Other specifications are available on request.
