Pocket Filter

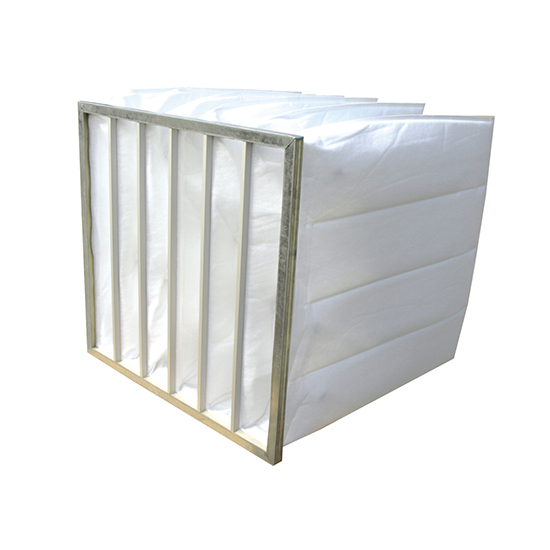

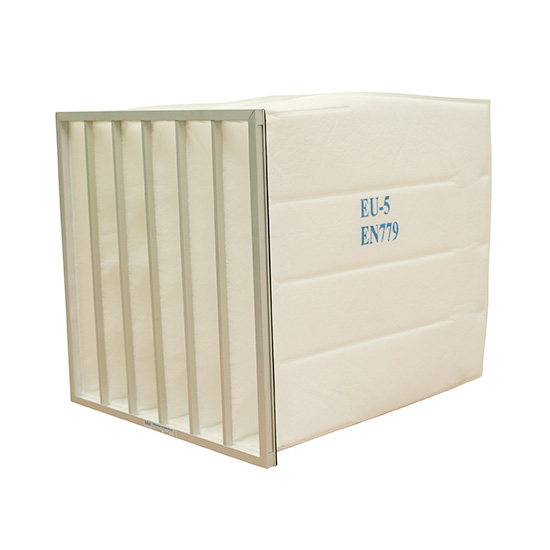

Synthetic Fiber Pocket Filter

Product Features

Common Applications:
Pre-filtration in air conditioning system

Filter Media:
Made from synthetic fiber and micro fiber materials for pocket filters in gradual technology. It conforms to European DIN53438-F1 .

Features:
Filter media is composited of high quality superfine synthetic fibers made by melt-blown adhesive technology, combined with 10mm anti-burst high-frequency welding structure. The bag side seam is made by high-frequency welding to increase the structural rigidity to ensure filter levels will not fall off when the airflow is suddenly opened or stops and to avoid secondary dust producing, greatly enhancing the comprehensive performance of the bags. Accompanied by thin air separation air bag structure and conforming to the standard V-shaped structure, it can stabilize the airflow to the greatest degree to make full use of the filter media and ensure the best filter results. Low resistance and huge effective filtration area

Consult now

Technical Parameters

Filter Class	Dimensions WHD(mm)	Pockets	Filter Area(㎡)	Rated Airflow(m³/h)	Initial Resistance(Pa)	Recommended Final Resistance(Pa)
G3	595595600	6	4.64	3400	20	150
	495595600	5	3.87	2800	20	150
	295595600	3	2.32	1700	20	150
G4	595595600	6	4.64	3600	35	200
	495595600	5	3.87	3000	35	200
	295595600	3	2.32	1900	35	200
F5	595595600	6	4.64	4250	50	250
	495595600	5	3.87	3650	50	250
	295595600	3	2.32	2100	50	250
F6	595595600	6	4.64	4250	80	400
	495595600	5	3.87	3650	80	400
	295595600	3	2.32	2100	80	400
F7	595595600	6	4.64	4250	125	450
	495595600	5	3.87	3650	125	450
	295595600	3	2.32	2100	125	450
F8	595595600	6	4.64	4250	150	450
	495595600	5	3.87	3650	150	450
	295595600	3	2.32	2100	150	450
