High Efficiency HEPA Filter

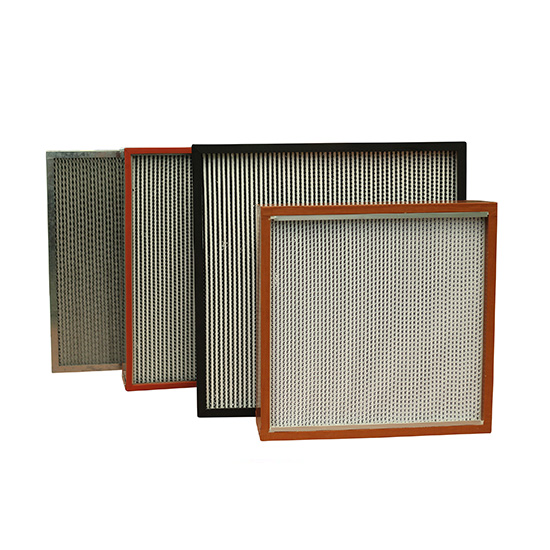

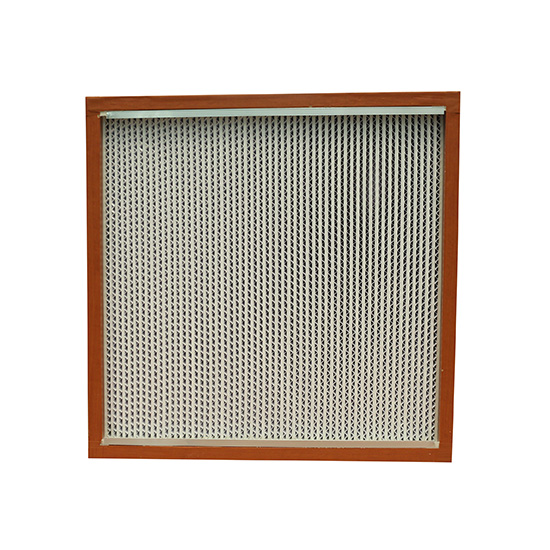

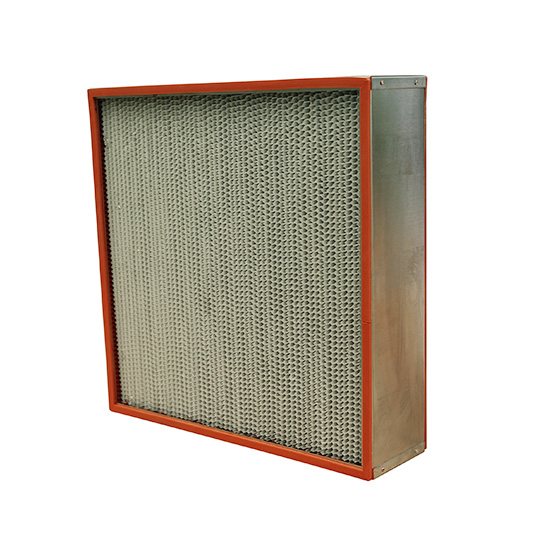

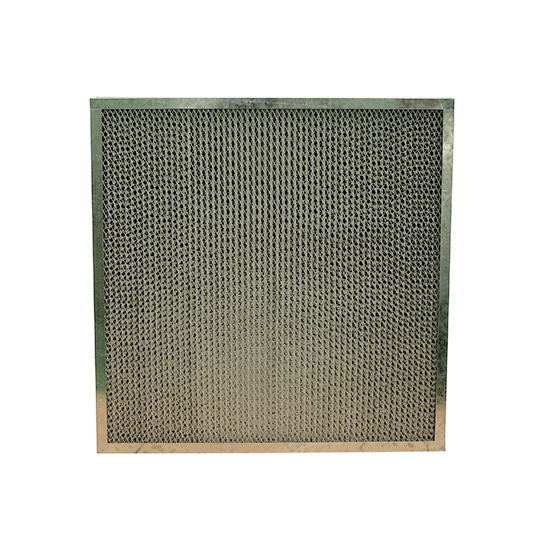

Separator HEPA Filter

Product Features

Common Applications:
Filtering 0.3 microns or less suspended particles in the air, it is widely used in the end filtration of the civil or industrial cleaner places requiring a higher degree of cleanliness such as electronics, semiconductor, precision machinery, pharmaceuticals, hospitals, food etc.

Features:
Adopting the superfine fiberglass filter paper or PP high efficiency filter paper as the media, separated by folded glue paperboard, aluminum foil, sealed by the new polyurethane sealant. Low loss, high efficiency, light weight, it is tested precisely one by one.

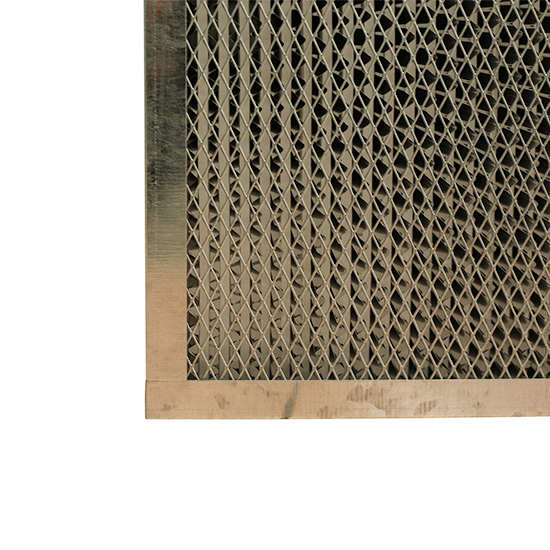

Separator:
aluminum foil, glue paperboard

Frame:
laminated wood, galvanized steel sheet, aluminum alloy plate

Temperature resistance:
80 ℃

Consult now

Technical Parameters

Type Dimensions W*H*D(mm) Filter
Area(㎡)
Rated
Airflow(m³/h)
Initial
Resistance(Pa)
Maximum Final
Resistance(Pa)
Recommended
Airflow(m³/h)
SHW-HY 305*610*150 4.1 425 235 1300 250-500
610*610*150 8.8 850 235 1300 500-1000
320*320*220 5.3 425 235 2000 300-425
484*484*220 11.7 1000 230 2000 600-1000
630*630*220 15.6 1500 220 1800 1000-1500
945*630*220 24.0 2250 215 1800 1500-2250
1260*630*220 32.4 3000 215 1800 2000-3000
610*610*292 17.6 1700 245 2200 1000-1900
1220*610*292 33.6 3400 240 2200 2000-3800

①The wind speed of unidirectional flow clean system is generally less than 0.45m / s and the inlet side is 0.45m / s (90fpm) according to the test standard;
②“Recommended airflow” is only for non-unidirectional flow clean systems, such as dilution systems (also known as turbulent flow clean room)
Note: Other specifications are available on request
