Ceiling/Roof Filter

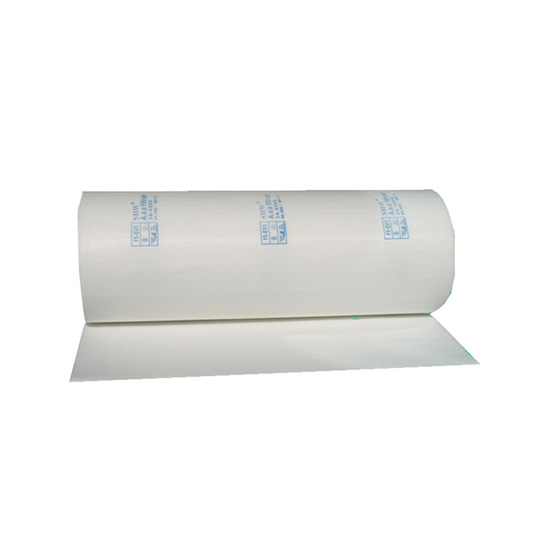

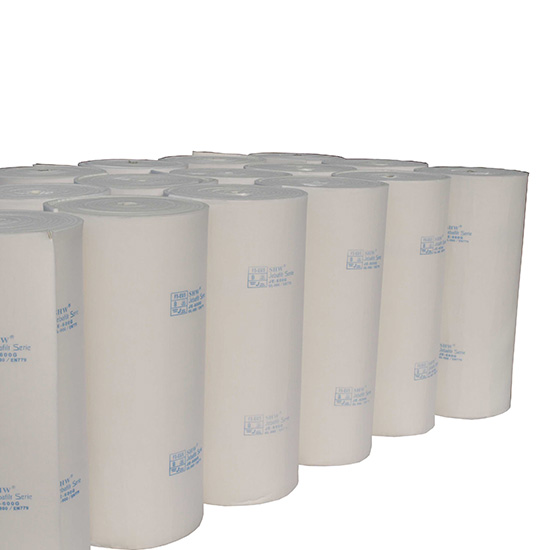

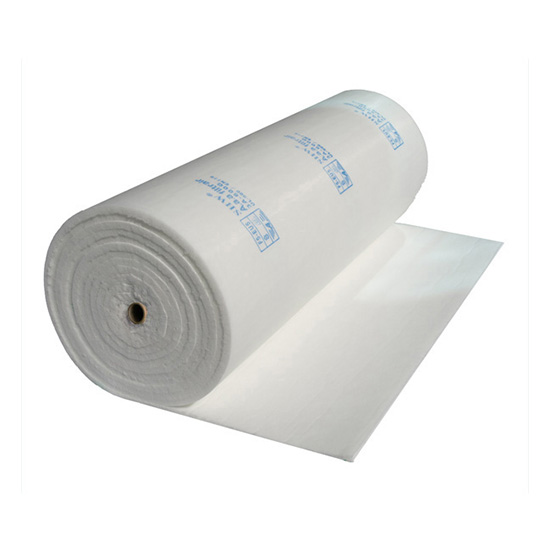

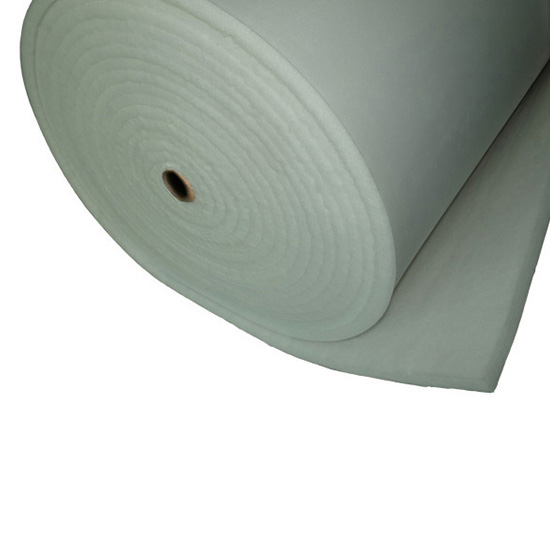

3A Ceiling Filter

Product Features

Application：
The series of ceiling filters are mainly used in advanced industries such as car painting, hi-tech electronics, aerospace and other military areas etc.

Type：
3A -600G/560G are backed with imported PE or common non-flammable net scrim.

Characteristic：
The outlet side of the filter media is reinforced by imported PE net or common non-flammable net. High flame resistance, high dust holding capacity, low initial resistance, safe and reliable. Composited of imported high-performance, anti-broken synthetic fiber in gradual technology; Due to complete penetration of viscosity in media, dust particles can not pass. Fully filtered air evenly spreads to form a laminar flow state to achieve the best spray results. Conforming to European DIN53438-F1 and American UL900-Class2. The outlet side is printed with EN-779 standard classifications, DIN logo＆the registered trademark of SHW. Moisture resistance, up to 100% relative humidity

Consult now

Technical Parameters

Type	Filter Class	Average Arrestance	Average Efficiency	Nominal Velocity(m/s)	Rated Airflow(m³/h)	Initial Resistance(Pa)	Final Resistance(Pa)	Dust Holding Capacity(g/㎡)	Continuous Temperature(℃)	Instantaneous Temperature(℃)	Thickness(mm)	Sizes
3A-600G	F5	98%	55%	0.25 m/s	900 m3/h	30 Pa	450 Pa	460 g/m2	100℃	120℃	22mm	1.6*21M
3A-600G	F5	98%	55%	0.25 m/s	900 m3/h	30 Pa	450 Pa	460 g/m2	100℃	120℃	22mm	2.0*21M
3A-560G	F5	96%	50%	0.25m/s	900m3/h	25Pa	450Pa	400g/m2	100℃	120℃	25mm	1.6*21M
3A-560G	F5	96%	50%	0.25m/s	900m3/h	25Pa	450Pa	400g/m2	100℃	120℃	25mm	2.0*21M
