High Efficiency HEPA Filter

Mini-Pleat HEPA Filter

Product Features

Common Applications:
Filtering 0.3 microns or less suspended particles in the air, it is widely used in the terminal filtration of the civil or industrial cleaner places requiring a higher degree of cleanliness such as electronics, semiconductor, precision machinery, pharmaceuticals, hospitals, food etc.

Features:

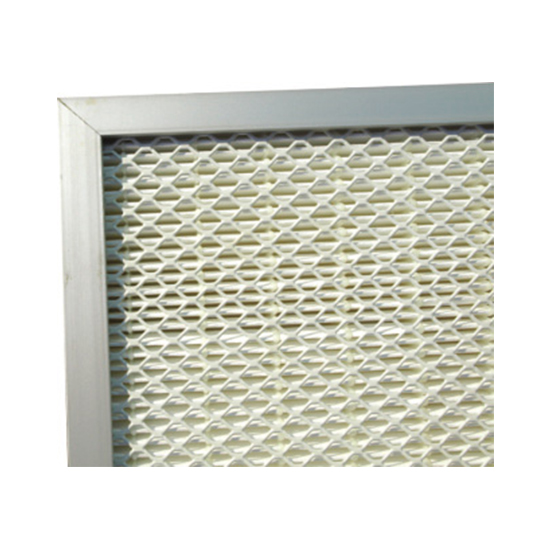

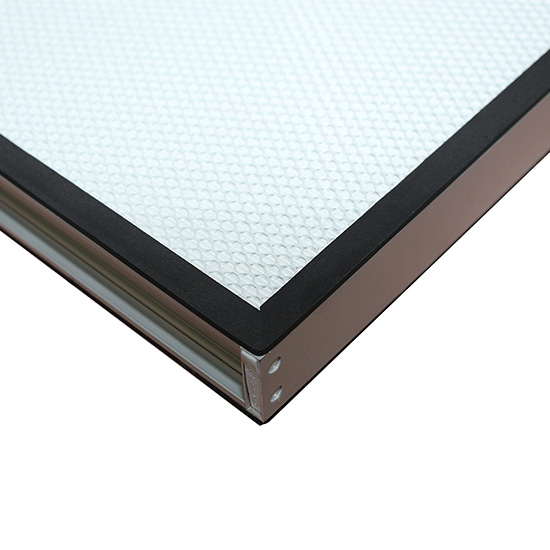

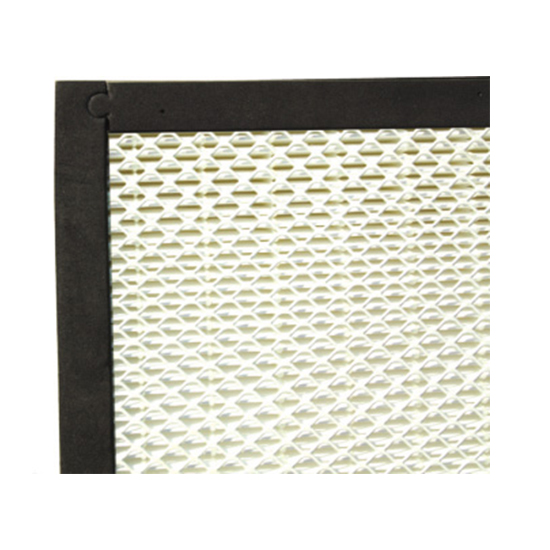

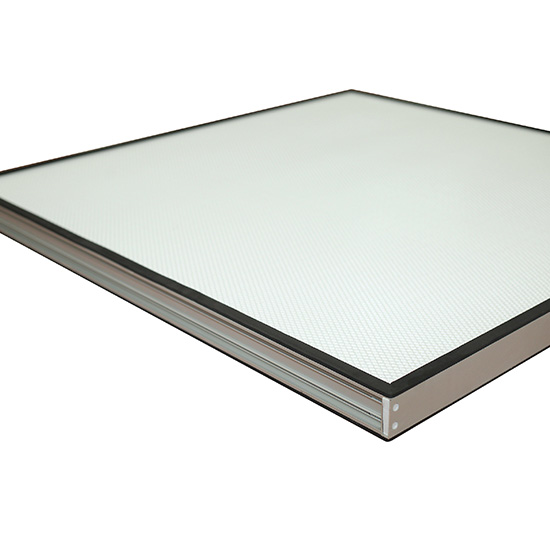

Adopting the superfine fiberglass filter paper as the media, separated by hot melt adhesive and fiberglass thread, sealed by the new polyurethane sealant, aluminum alloy frame with combined spray protection network both in the outlet and inlet side to protect filter paper. Low loss, high efficiency, light weight, it is tested precisely one by one.

Frame:
Aluminum

Temperature resistance:
80 ℃

Consult now

Technical Parameters

Type Dimensions W*H*D(mm) Filter Area(㎡) Resistance at the speed of
0.45m/s
Recommended Airflow(m³/h)
H13 H14 H15
SHW-HW 610*610*50 7.0 145 160 180 600-1000
305*305*70 2.5 120 135 160 100-250
305*610*70 5.0 120 135 160 300-500
610*610*70 10.2 120 135 160 600-1000
915*610*70 15.4 120 135 160 900-1500
305*610*90 6.5 85 100 120 300-500
610*610*90 13.1 85 100 120 600-1000
915*610*90 19.7 85 100 120 900-1500
1220*610*90 26.5 85 100 120 1200-2000
