Medium And Sub-HEPA Filter

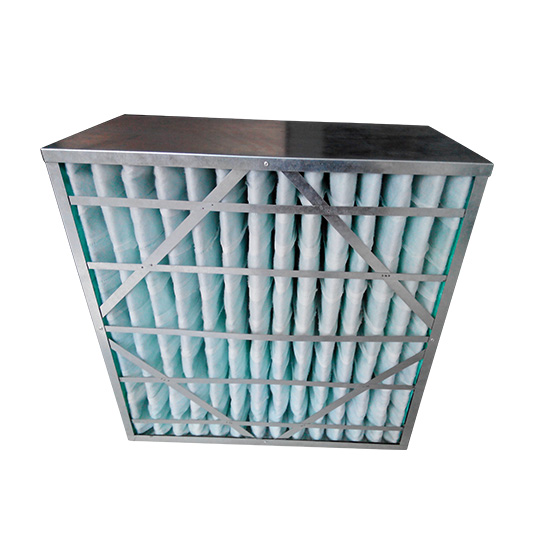

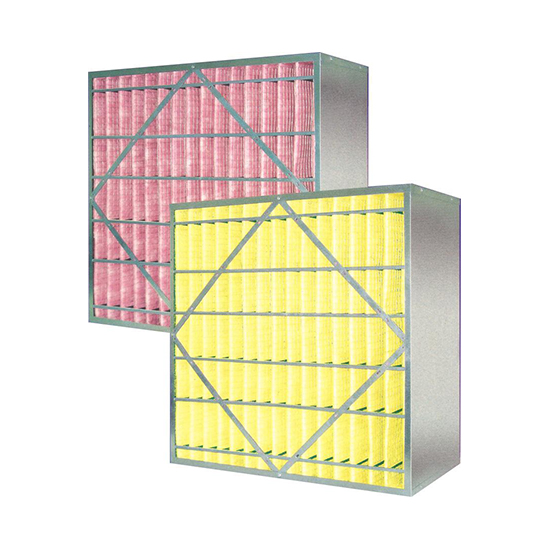

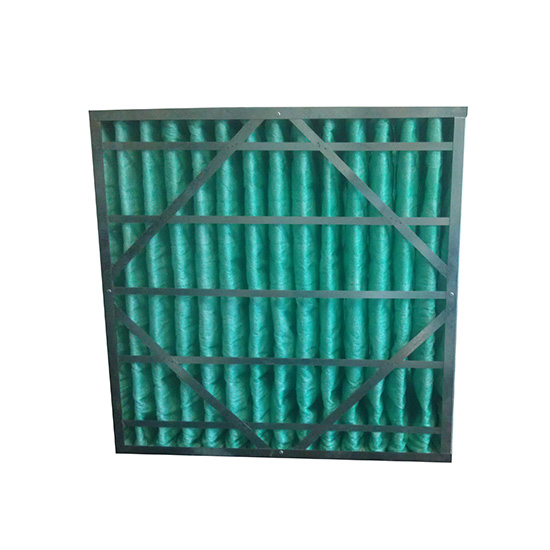

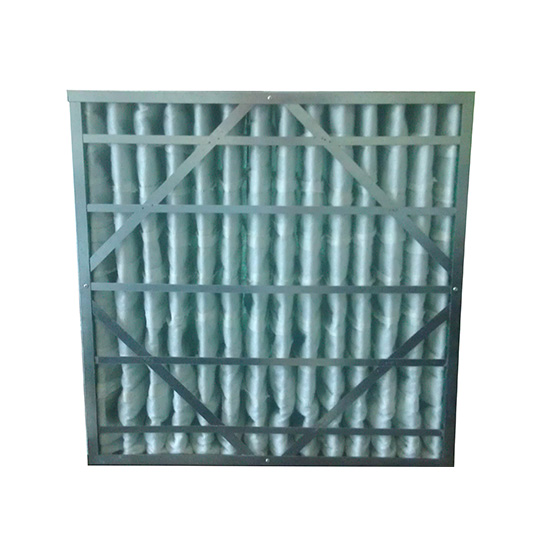

Box Medium And Sub-HEPA Filter

Product Features

Common Applications:
It is widely used in air purification systems of electronics, bio-pharmaceuticals, mechanical instrument & petrochemical industry etc.

Features:
Adopting composite non-woven, fiberglass filter and the partition design, corrugated partitions keep the pleat spacing precise to make full use of filter material. Low resistance, high airflow, separated and supported by a metal frame inside, combination of high strength galvanized plate as the frame, it has solid structure and long life cycle.

Consult now

Technical Parameters

Filter Class Dimensions W*H*D(mm) Filter Area(㎡) Rated Airflow(m³/h) Initial Resistance(Pa) Recommended Final Resistance(Pa)
F5 595*595*295 6.0 3500 60 250
295*595*295 3.0 1750 60 250
F6 595*595*295 6.0 3800 75 400
295*595*295 3.0 1900 75 400
F7 595*595*295 6.0 3300 95 450
295*595*295 3.0 1650 95 450
F8 595*595*295 6.0 3000 105 450
295*595*295 3.0 1500 105 450

Note: Other specifications are available on request
