Ceiling/Roof Filter

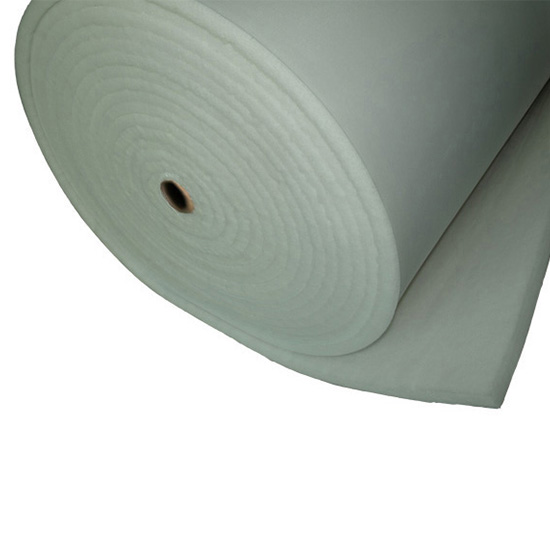

PE Ceiling Filter

Product Features

Application：
It's mainly supplied to overseas customers and domestic famous companies, used in advance industries such as car painting, Hi-tech electronics, aerospace and other military areas.

Type：

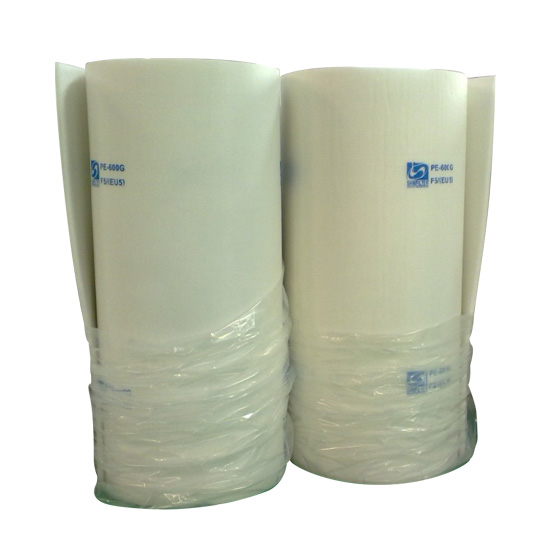

PE-600G/560G

Characteristic：

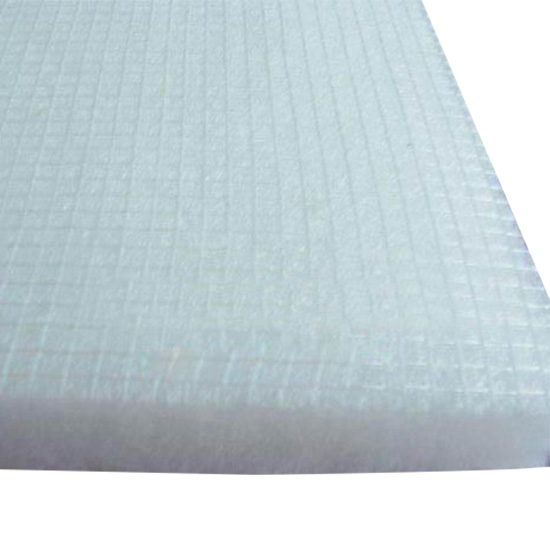

●The outlet side of the filter media is reinforced by imported PE net. High flame resistance, high dust holding capacity, low initial resistance, safe and reliable.
●Composited of imported high-performance, break-resistant synthetic fiber in gradual technology.
●Due to complete penetration of viscosity in media, dust particles can not pass. Fully filtered air evenly spreads to form a laminar flow state to achieve the best spray results.
●Conforming to European DIN53438-F1 and American UL900-Class2
●The outlet side is printed with EN-779 standard classifications, DIN logo＆the registered trademark of SHW.

Consult now

Technical Parameters

Type	Filter Class	Average Arrestance	Initial Efficiency	Nominal Velocity(m/s)	Rated Airflow(m³/h)	Initial Resistance(Pa)	Final Resistance(Pa)	Dust Capacity(g/㎡)	Continuous Temperature(℃)	Instantaneous Temperature(Pa)	Thickness(mm)	Size
PE-600G	F5	98%	55%	0.25 m/s	900 m3/h	30 Pa	450 Pa	460 g/m2	100℃	120℃	22mm	1.6*21M
PE-600G	F5	98%	55%	0.25 m/s	900 m3/h	30 Pa	450 Pa	460 g/m2	100℃	120℃	22mm	2.0*21M
PE-560G	F5	96%	50%	0.25m/s	900m3/h	25Pa	450Pa	400g/m2	100℃	120℃	25mm	1.6*21M
PE-560G	F5	96%	50%	0.25m/s	900m3/h	25Pa	450Pa	400g/m2	100℃	120℃	25mm	2.0*21M
