High-Temp Filter

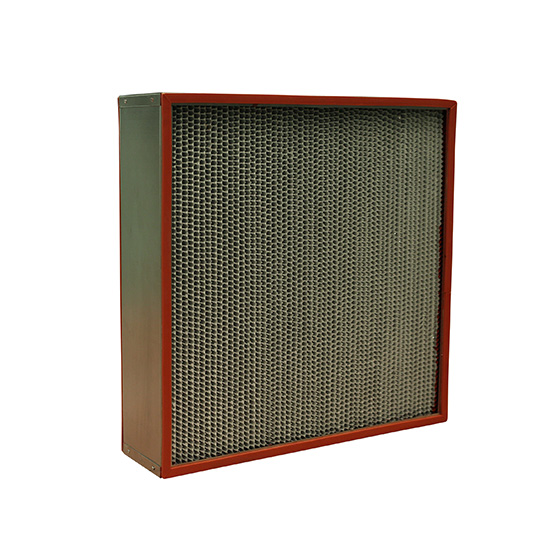

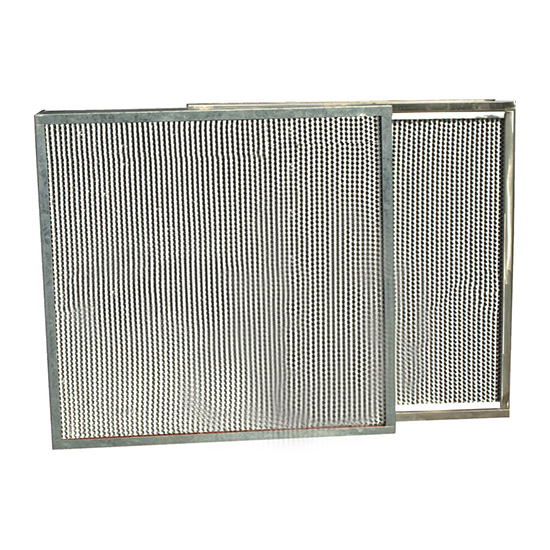

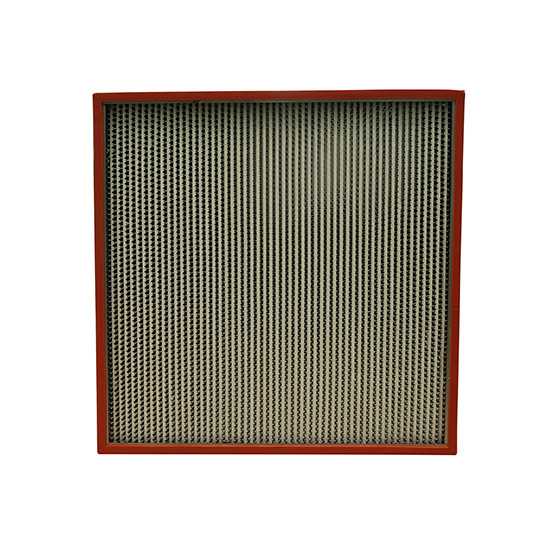

High Temperature HEPA Filter

Product Features

Common Applications:
It is mainly used in the areas requiring high-temperature purification equipments and systems of automobile manufacturing, hot air filtration in high temperature spraying environment, food, pharmaceutical and other production processes or the clean oven.

Features:

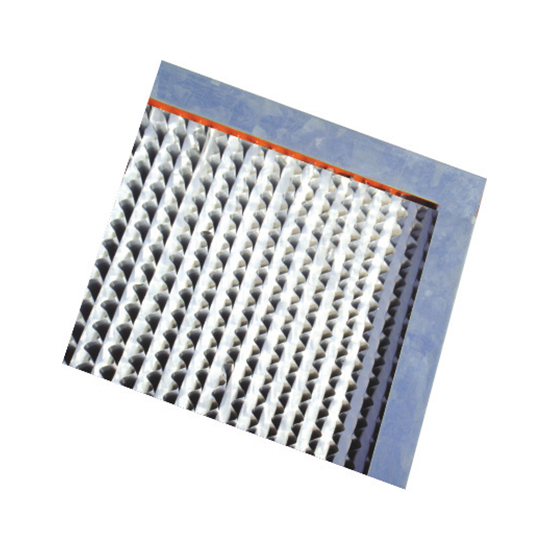

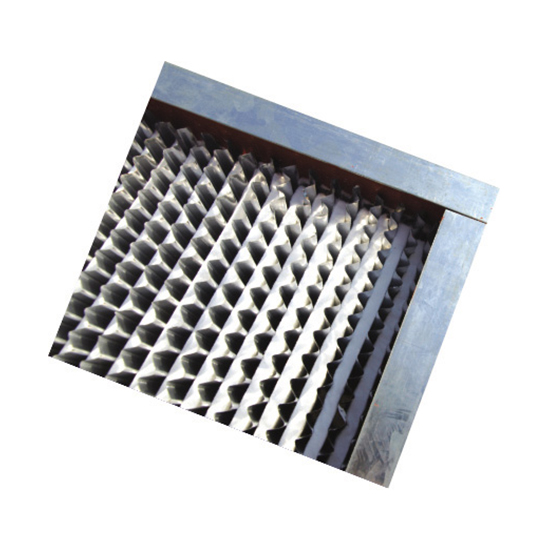

deep-pleat structure, high temperature resistance or superfine fiberglass filter paper as the media, high temperature sealant, special aluminum foil as the separator, special equipment for folding, stainless steel as the framework, its efficiency is up to F9-H14.

Temperature resistance:
250℃ and 350℃

Consult now

Technical Parameters

Type	Dimensions WHD (mm)	Filter Area (㎡)	Rated Airflow（m³/h）	Initial Resistance（Pa）
Type	Dimensions WHD (mm)	Filter Area (㎡)	Rated Airflow（m³/h）	H10	H12	H13	H14
SHW-HG	305305150	2.4	250	≤150	≤190	≤220	≤240
	610610150	10.2	1000
	1220610150	20.6	2000
	320320220	4.1	350
	484484220	9.6	1000
	630630220	16.5	1500
	305610292	10.1	1000
	610610292	20.9	2000
