Pocket Filter

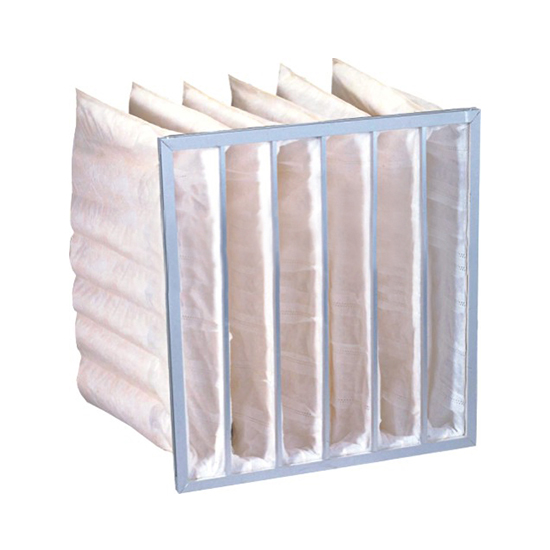

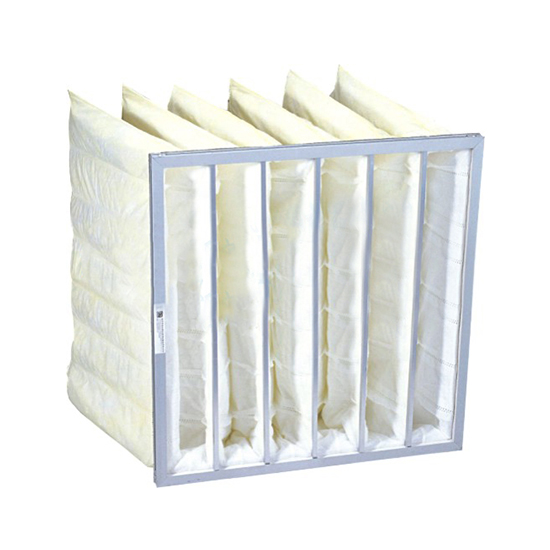

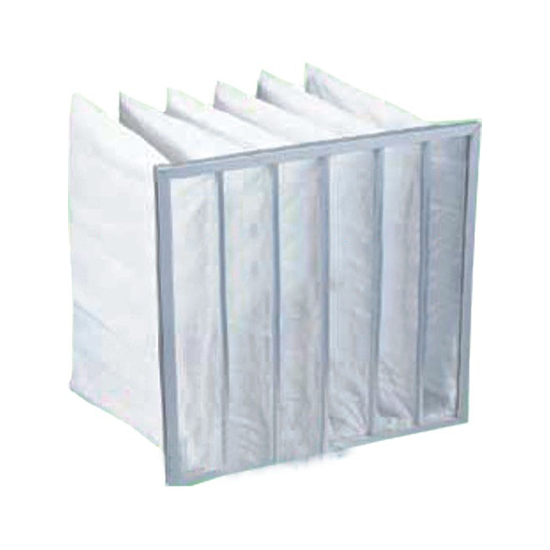

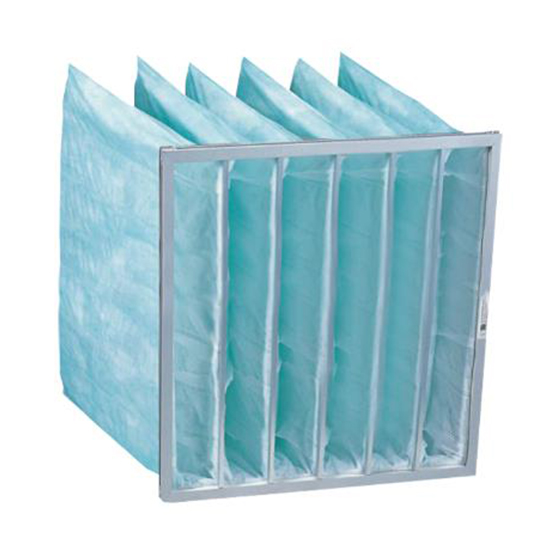

Electrostatic Nonwoven Pocket Filter

Product Features

Common Applications:
coarse and subtle dust filtration in air conditioning ventilation system

Features:
utilizing hot-melt technology, having firm structure and reducing the leaking risk; adopting high-quality electrostatic nonwovens with pockets; with the advantage of diffluent and equal airflow while maintaining bag shape; reducing consumption and making full use of filter materials without the rupturing danger of old fiber glass and the condition of breeding microbe as well as the discomfort to human. Long working life and the maximum temperature can reach 80℃

Consult now

Technical Parameters

Average Efficiency	Dimensions WHD mm	Pockets	Filter Area(㎡)	Rated Airflow(m³/h)	Initial Resistance(Pa)	Recommended Final Resistance(Pa)
35%	595595600	6	4.64	4300	40	250
	495595600	5	3.87	3500	40	250
	295595600	3	2.32	2100	40	250
45%	595595600	6	4.64	4000	55	300
	495595600	5	3.87	3300	55	300
	295595600	3	2.32	2000	55	300
65%	595595600	6	4.64	3250	70	350
	495595600	5	3.87	2600	70	350
	295595600	3	2.32	1650	70	350
85%	595595600	6	4.64	3150	95	350
	495595600	5	3.87	2550	95	350
	295595600	3	2.32	1560	95	350
95%	595595600	6	4.64	2800	120	400
	495595600	5	3.87	2350	120	400
	295595600	3	2.32	1420	120	400
