Pre-Filter

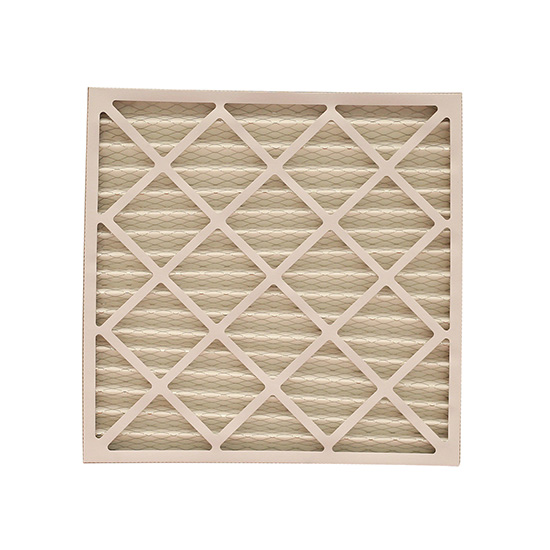

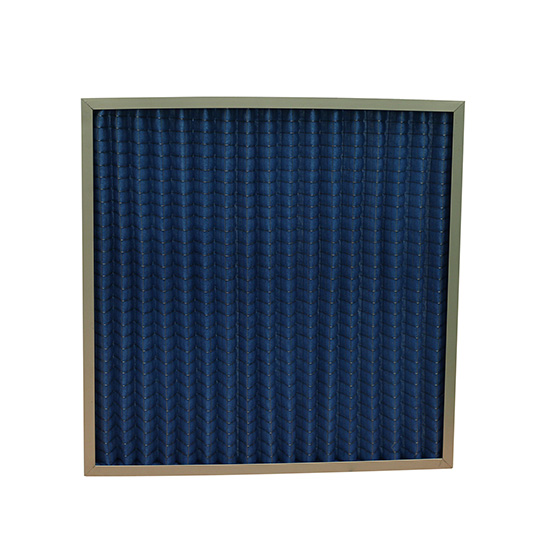

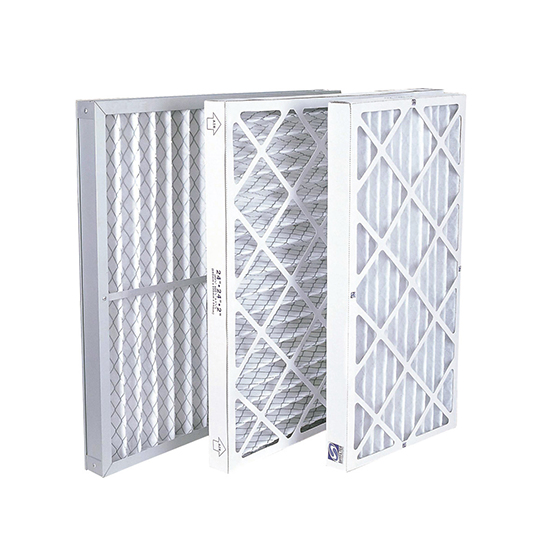

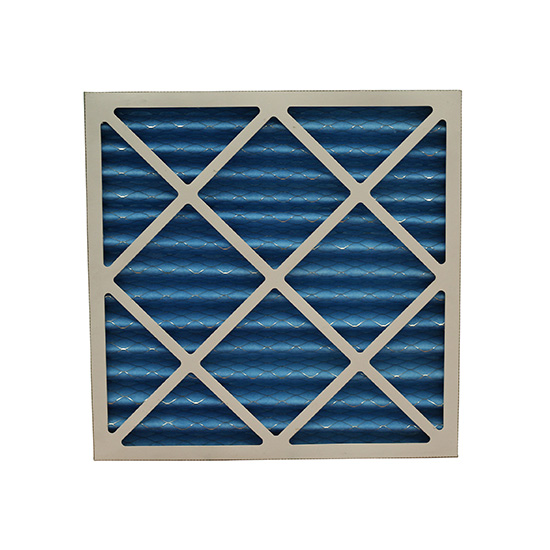

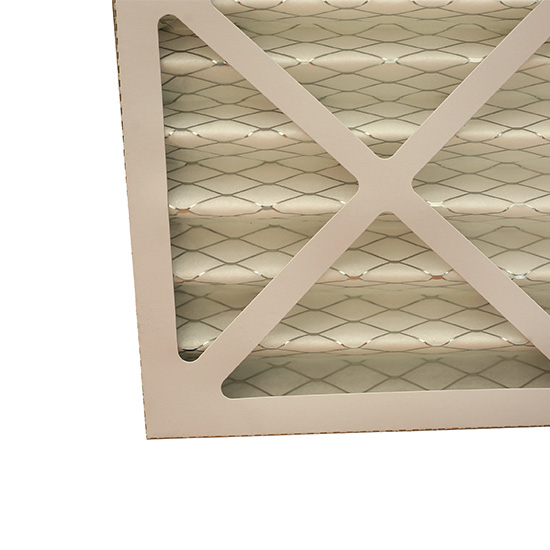

Foldaway Pre Filter Mesh

Product Features

Speciality：
Common Applications: dust filtration, pre-filtration in air filter program

Features：
large filtering area, low initial resistance, high air flow, large dust holding capacity, completely droppable

Filter Media：
Incremental structure of flame-retardant synthetic fiber filter media, conforming to the European DIN53438-F1

Frame:
Waterproofing chipboard, abandoned chipboard frame filters can be burned, no pollution, conforming to environmental requirements / metal frame also available. With unique design, it can be reused, reducing cost.

Consult now

Technical Parameters

Filter Class	Dimensions WHD(mm)	Rated Airflow(m³/h)	Average Arrestance	Initial Resistance(pa)	Recommended FinalResistance(pa)	Continuous Temperature(℃)	Frame
G3	59559546	3200	85%	35	180	80	Waterproofing chipboard / Aluminum alloy / Galvanized sheet
	59549546	2700
	59529546	1600
	49549546	2200
G4	59559546	3200	90%	45	200	80
	59549546	2700
	59529546	1600
	49549546	2200
