Medium And Sub-HEPA Filter

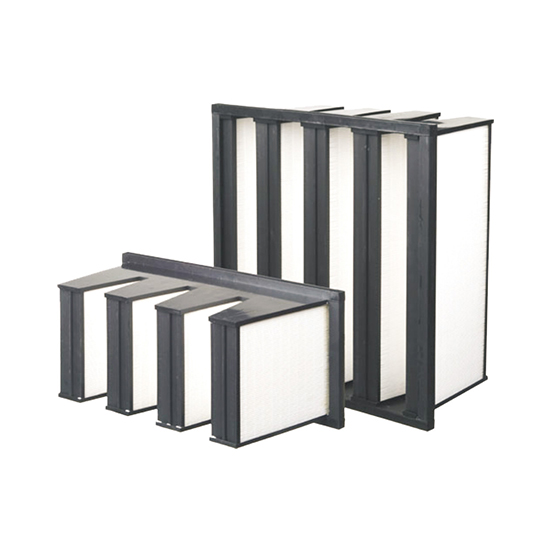

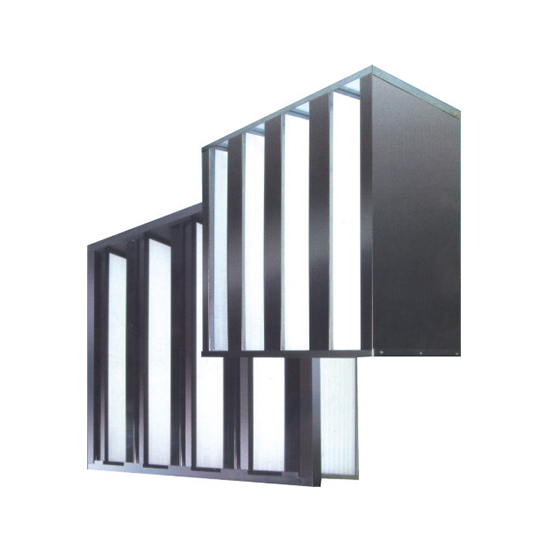

V-Bank Mini-Pleat HEPA Filter

Product Features

Common Applications:
Applied to large air flow ventilation system, filtration system of pharmaceutical, food, hospitals, clean room etc. It can be used as terminal-filtration of medium and high efficiency filtration system or pre-filtration of super-efficient filtration system.

Features:

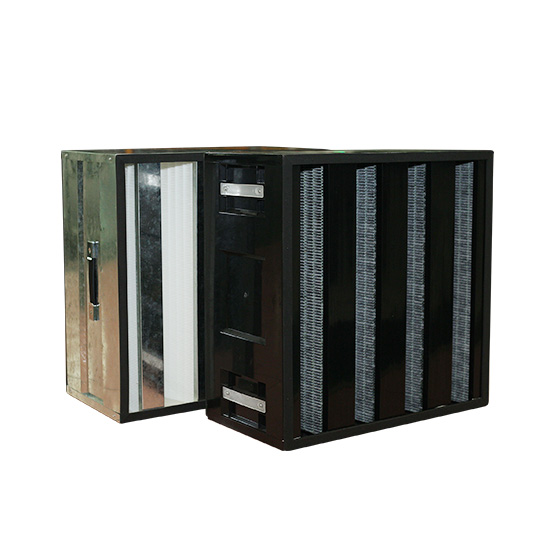

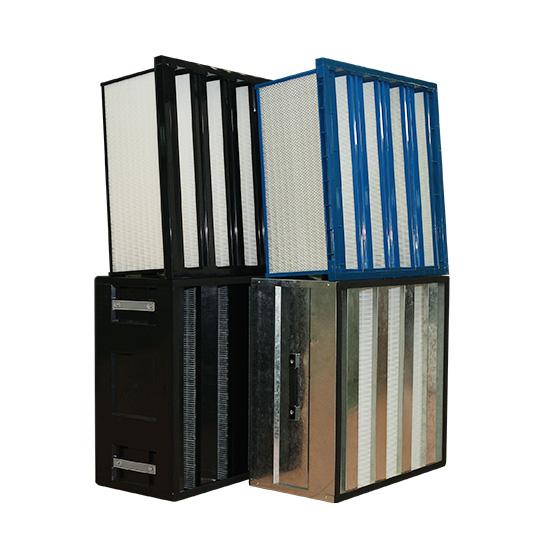

It is a kind of deep loading high efficiency filter, suitable for permanent or impermanent airflow system. It's constructed to V-type by multiple mini-pleat media, installed in galvanized box or ABS plastic box. Compared with the common filters, it ideally enlarges the filter area, ensuring low media damage and low energy consumption to save cost in the present installation system.

Consult now

Technical Parameters

Type Dimensions W*H*D(mm) Filter Area(㎡) Structure Initial resistance & airflow
(Pa&m³/h)
F8 H10 H13
SHW-HV 287*592*292 8.4 Flanged Type
4V
68&1200 135&1200 180&1200
90&1600 180&1600 240&1600
592*592*292 18.8 68&2400 135&2400 180&2400
90&3200 180&3200 240&3200
305*610*292 13.5 Box Type
5V
68&1350 135&1350 180&1350
90&1800 180&1800 240&1800
610*610*292 27 68&2700 135&2700 180&2700
90&3600 180&3600 240&3600

Note: Other specifications are available on request
