Ceiling/Roof Filter

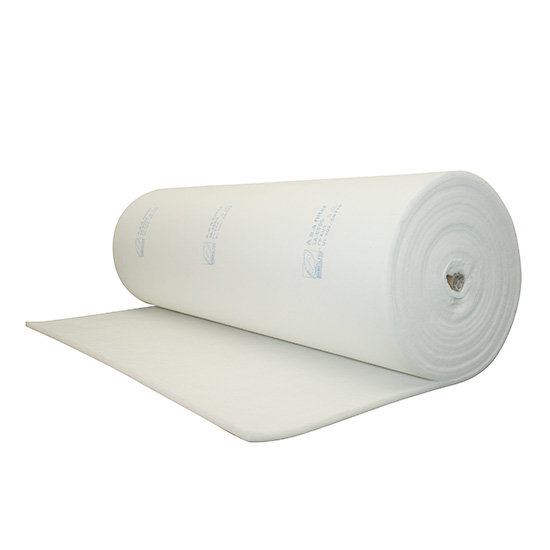

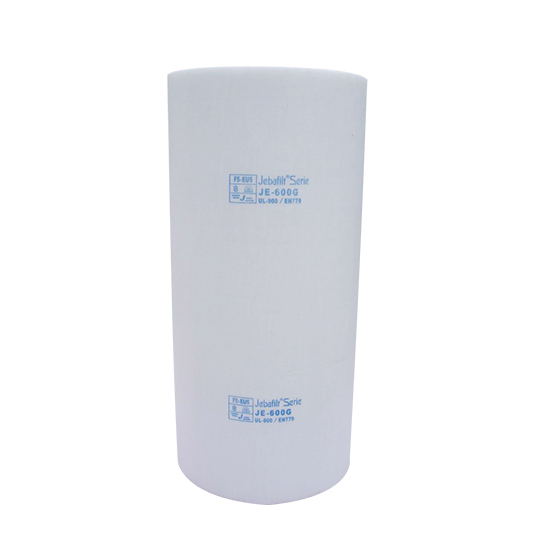

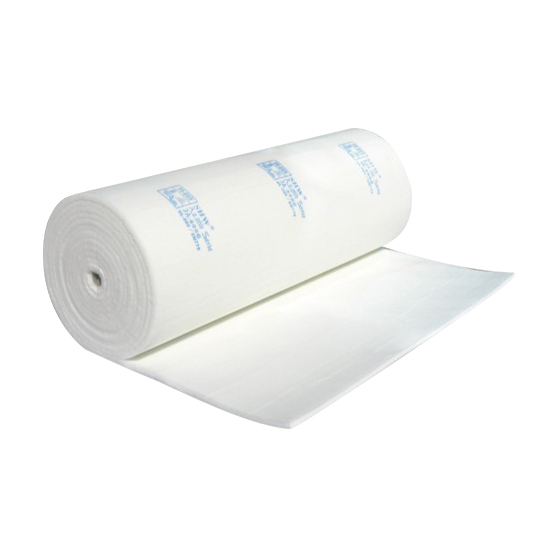

600G Spraybooth Ceiling Filter

Product Features

Application：
Backed with imported PE net scrim, Chinese fiberglass net scrim, nylon net and Chinese fire retardant net scrim.

Type：
SP-600G; JE-600G; ”AAA”3A-600G; PE-600G

Characteristic：
The series of ceiling filters are mainly used in surface spray-paint industry, especially for final filtration in spray booth, which is processed by high-powered nonwovens of antibreak synthetic fiber. With gradual technology, the fiber density increases gradually toward pure air, high filter efficiency, extended working life. Due to complete penetration of viscosity in media, dust particles can not pass. Fully filtered air evenly spreads to form a laminar flow state to achieve the best spray results. Conforming to European DIN53438-F1 and American UL900-Class2. The outlet side is printed with EN-779 standard classifications, DIN logo, the registered trademark of SHW. Dense outlet side, low initial resistance, high dust holding capacity, good fire retardant and long working life, economical and reliable, the surface is reinforced by covered net scrim. Moisture resistance, up to 100% relative humidity

Consult now

Technical Parameters

Type	Filter Class	Average Arrestance	Initial Efficiency	Nominal Velocity(m/s)	Rated Airflow(m³/h)	Initial Resistance(Pa)	Final Resistance(Pa)	Dust Holding Capacity(g/㎡)	Continuous Temperature(℃)	Instantaneous Temperature(℃)	Thickness(mm)	Sizes
SP-600G	F5	98%	55%	0.25 m/s	900 m3/h	30 Pa	450 Pa	460 g/m2	100℃	120℃	22mm	1.6*21M
SP-600G	F5	98%	55%	0.25 m/s	900 m3/h	30 Pa	450 Pa	460 g/m2	100℃	120℃	22mm	2.0*21M
JE-600G	F5	98%	55%	0.25m/s	900m3/h	30Pa	450Pa	460g/m2	100℃	120℃	22mm	1.6*21M
JE-600G	F5	98%	55%	0.25m/s	900m3/h	30Pa	450Pa	460g/m2	100℃	120℃	22mm	2.0*21M
3A-600G	F5	98%	55%	0.25m/s	900m3/h	30Pa	450Pa	460g/m2	100℃	120℃	22mm	1.6*21M
3A-600G	F5	98%	55%	0.25m/s	900m3/h	30Pa	450Pa	460g/m2	100℃	120℃	22mm	2.0*21M
PE-600G	F5	98%	55%	0.25m/s	900m3/h	30Pa	450Pa	460g/m2	100℃	120℃	22mm	1.6*21M
PE-600G	F5	98%	55%	0.25m/s	900m3/h	30Pa	450Pa	460g/m2	100℃	120℃	22mm	2.0*21M
