Ceiling/Roof Filter

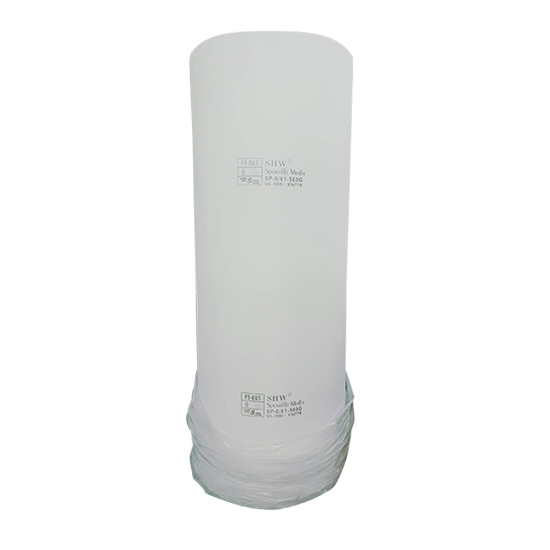

Paint Booth 560G Ceiling Filter

Product Features

Application:
The series of ceiling filter are mainly used for surface coating, high-tech electronics, military aerospace etc.;

Type:
SP-560G, JE-560G, 3A-560G, PE-560G are available

Characteristic:

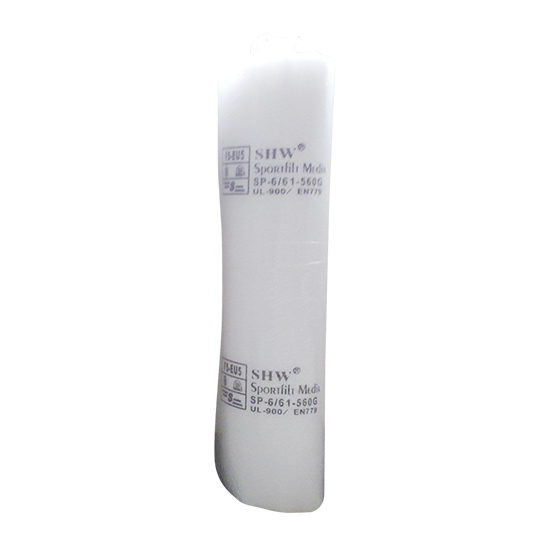

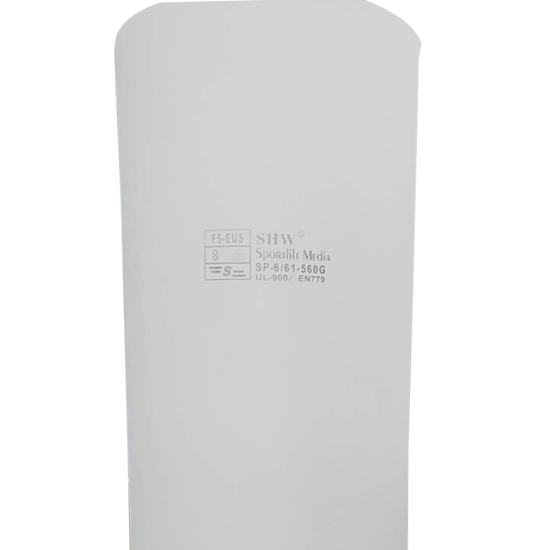

They are made of high-performance anti-broken synthetic fiber in gradual density technology. Gradual density structure, that is the density increases towards the air outlet side, good filter efficiency, long working life. Surface adhesive makes dust particles unable to pass the filter media. Fully filtered air evenly spreads to form a laminar flow state to achieve the best spray results. Conforming to European DIN53438-F1 and American UL900-Class2. The outlet side is printed with EN-779 standard classifications, DIN logo&the registered trademark of SHW. Gradual density, outlet side backed with net scrim or nylon cloth, low initial resistance, high dust holding capacity, long working life, economical. Moisture resistance, up to 100% relative humidity.

Consult now

Technical Parameters

Type Filter Class Average
Arrestance
Average
Efficiency
Nominal
Velocity(m/s)
Rated
Airflow(m³/h)
Initial
Resistance(Pa)
Final
Resistance(Pa)
Dust Holding
Capacity(g/㎡)
Continuous
Temperature(℃)
Instantaneous
Temperature(℃)
Thickness Sizes
SP-560G F5 96% 50% 0.25m/s 900 m3/h 25Pa 450Pa 400 g/m2 100℃ 120℃ 25 mm 1.6*21M
2.0*21M
JE-560G F5 96% 50% 0.25m/s 900 m3/h 25 Pa 450Pa 400 g/m2 100℃ 120℃ 25 mm 1.6*21M
2.0*21M
3A-560G F5 96% 50% 0.25 m/s 900 m3/h 25 Pa 450 Pa 400 g/m2 100℃ 120℃ 25 mm 1.6*21M
2.0*21M
PE-560G F5 96% 50% 0.25 m/s 900 m3/h 25 Pa 450 Pa 400 g/m2  100℃ 120℃ 25 mm 1.6*21M
2.0*21M

Note: Other specifications are available on request
